SEAI 2022 - R - Lab 6
Spatial Econometrics Modelling with R
Vincenzo Nardelli - vincnardelli@gmail.com - https://github.com/vincnardelli
Lab structure
Let’s load columbus data
library(sf)
## Linking to GEOS 3.10.2, GDAL 3.4.2, PROJ 8.2.1; sf_use_s2() is TRUE
library(dplyr)
##
## Attaching package: 'dplyr'
## The following objects are masked from 'package:stats':
##
## filter, lag
## The following objects are masked from 'package:base':
##
## intersect, setdiff, setequal, union
library(spdep)
## Loading required package: sp
## Loading required package: spData
## To access larger datasets in this package, install the spDataLarge
## package with: `install.packages('spDataLarge',
## repos='https://nowosad.github.io/drat/', type='source')`
library(spatialreg)
## Loading required package: Matrix
##
## Attaching package: 'spatialreg'
## The following objects are masked from 'package:spdep':
##
## get.ClusterOption, get.coresOption, get.mcOption,
## get.VerboseOption, get.ZeroPolicyOption, set.ClusterOption,
## set.coresOption, set.mcOption, set.VerboseOption,
## set.ZeroPolicyOption
library(lmtest)
## Loading required package: zoo
##
## Attaching package: 'zoo'
## The following objects are masked from 'package:base':
##
## as.Date, as.Date.numeric
library(tseries)
## Registered S3 method overwritten by 'quantmod':
## method from
## as.zoo.data.frame zoo
columbus <- read_sf("data/columbus/columbus.shp")
nb<-poly2nb(columbus, queen=T)
listw <- nb2listw(nb)
listw
## Characteristics of weights list object:
## Neighbour list object:
## Number of regions: 49
## Number of nonzero links: 236
## Percentage nonzero weights: 9.829238
## Average number of links: 4.816327
##
## Weights style: W
## Weights constants summary:
## n nn S0 S1 S2
## W 49 2401 49 22.75119 203.7091
OLS
ols <- lm (CRIME ~ INC + HOVAL, data=columbus)
summary(ols)
##
## Call:
## lm(formula = CRIME ~ INC + HOVAL, data = columbus)
##
## Residuals:
## Min 1Q Median 3Q Max
## -34.418 -6.388 -1.580 9.052 28.649
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## (Intercept) 68.6190 4.7355 14.490 < 2e-16 ***
## INC -1.5973 0.3341 -4.780 1.83e-05 ***
## HOVAL -0.2739 0.1032 -2.654 0.0109 *
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 11.43 on 46 degrees of freedom
## Multiple R-squared: 0.5524, Adjusted R-squared: 0.5329
## F-statistic: 28.39 on 2 and 46 DF, p-value: 9.341e-09
coefficients(ols)
## (Intercept) INC HOVAL
## 68.6189611 -1.5973108 -0.2739315
res <- residuals(ols)
res
## 1 2 3 4 5 6
## 0.3465419 -3.6947990 -5.2873940 -19.9855151 6.4475490 -9.0734793
## 7 8 9 10 11 12
## -34.4177224 -1.9146840 4.3960594 13.5091017 10.9800573 9.5877236
## 13 14 15 16 17 18
## 4.7728320 16.1128397 0.6675424 3.5491565 -4.6630963 12.8399569
## 19 20 21 22 23 24
## 12.8428644 3.4948724 -6.0537589 -7.8697868 -1.7037730 6.9913819
## 25 26 27 28 29 30
## 11.0984343 -9.1741523 10.8026296 7.1086321 14.9005133 28.6487456
## 31 32 33 34 35 36
## -15.1722792 -8.1776706 -4.3438864 -12.9749799 -1.5798172 -14.4376850
## 37 38 39 40 41 42
## 12.8687861 9.0515532 -9.1569014 12.2449674 -2.7098171 1.3443547
## 43 44 45 46 47 48
## -3.5432909 -6.3880045 -9.4155428 -1.9731210 1.1150296 -15.7632989
## 49
## -6.2476690

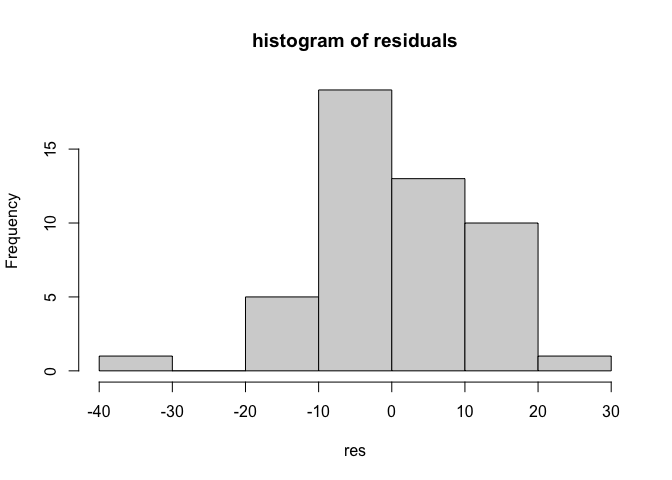

hist(res,main='histogram of residuals')
predict(ols, columbus)
## 1 2 3 4 5 6 7 8
## 15.379438 22.496553 35.914175 52.373275 44.283961 35.140137 34.595991 40.340542
## 9 10 11 12 13 14 15 16
## 26.119858 20.491733 51.295391 47.117945 41.943297 40.953292 47.917945 51.289554
## 17 18 19 20 21 22 23 24
## 41.531870 31.122529 41.679101 -3.271075 46.127833 41.574835 21.752277 31.306489
## 25 26 27 28 29 30 31 32
## 50.200741 50.143894 41.991800 49.811153 45.849933 40.243298 32.849493 27.323263
## 33 34 35 36 37 38 39 40
## 46.312049 36.949008 40.754870 28.743241 29.576290 44.659385 28.257764 3.996332
## 41 42 43 44 45 46 47 48
## 21.614963 15.147535 40.206903 32.350268 38.444031 18.503654 26.707831 42.408565
## 49
## 28.789160
Test for heteroskedasticity - Breush Pagan
H0: homoschedasticity vs H1: heteroschedasticity
bptest(ols)
##
## studentized Breusch-Pagan test
##
## data: ols
## BP = 7.2166, df = 2, p-value = 0.0271
Test for normality - Jarque-Bera
jarque.bera.test(ols$residuals)
##
## Jarque Bera Test
##
## data: ols$residuals
## X-squared = 1.8358, df = 2, p-value = 0.3994
Shapiro test
shapiro.test(ols$residuals)
##
## Shapiro-Wilk normality test
##
## data: ols$residuals
## W = 0.97708, p-value = 0.4497
lm.morantest(ols, listw)
##
## Global Moran I for regression residuals
##
## data:
## model: lm(formula = CRIME ~ INC + HOVAL, data = columbus)
## weights: listw
##
## Moran I statistic standard deviate = 2.8393, p-value = 0.00226
## alternative hypothesis: greater
## sample estimates:
## Observed Moran I Expectation Variance
## 0.222109407 -0.033418335 0.008099305
lm.LMtests(ols, listw, test="all")
##
## Lagrange multiplier diagnostics for spatial dependence
##
## data:
## model: lm(formula = CRIME ~ INC + HOVAL, data = columbus)
## weights: listw
##
## LMerr = 5.2062, df = 1, p-value = 0.02251
##
##
## Lagrange multiplier diagnostics for spatial dependence
##
## data:
## model: lm(formula = CRIME ~ INC + HOVAL, data = columbus)
## weights: listw
##
## LMlag = 8.898, df = 1, p-value = 0.002855
##
##
## Lagrange multiplier diagnostics for spatial dependence
##
## data:
## model: lm(formula = CRIME ~ INC + HOVAL, data = columbus)
## weights: listw
##
## RLMerr = 0.043906, df = 1, p-value = 0.834
##
##
## Lagrange multiplier diagnostics for spatial dependence
##
## data:
## model: lm(formula = CRIME ~ INC + HOVAL, data = columbus)
## weights: listw
##
## RLMlag = 3.7357, df = 1, p-value = 0.05326
##
##
## Lagrange multiplier diagnostics for spatial dependence
##
## data:
## model: lm(formula = CRIME ~ INC + HOVAL, data = columbus)
## weights: listw
##
## SARMA = 8.9419, df = 2, p-value = 0.01144
Spatial lag
lag<-lagsarlm(CRIME ~ INC + HOVAL,listw = listw, data=columbus)
summary(lag)
##
## Call:lagsarlm(formula = CRIME ~ INC + HOVAL, data = columbus, listw = listw)
##
## Residuals:
## Min 1Q Median 3Q Max
## -37.652017 -5.334611 0.071473 6.107196 23.302618
##
## Type: lag
## Coefficients: (asymptotic standard errors)
## Estimate Std. Error z value Pr(>|z|)
## (Intercept) 45.603250 7.257404 6.2837 3.306e-10
## INC -1.048728 0.307406 -3.4115 0.000646
## HOVAL -0.266335 0.089096 -2.9893 0.002796
##
## Rho: 0.42333, LR test value: 9.4065, p-value: 0.0021621
## Asymptotic standard error: 0.11951
## z-value: 3.5422, p-value: 0.00039686
## Wald statistic: 12.547, p-value: 0.00039686
##
## Log likelihood: -182.674 for lag model
## ML residual variance (sigma squared): 96.857, (sigma: 9.8416)
## Number of observations: 49
## Number of parameters estimated: 5
## AIC: 375.35, (AIC for lm: 382.75)
## LM test for residual autocorrelation
## test value: 0.24703, p-value: 0.61917
lag_gmm<-stsls(CRIME ~ INC + HOVAL,listw = listw, data=columbus)
summary(lag_gmm)
##
## Call:stsls(formula = CRIME ~ INC + HOVAL, data = columbus, listw = listw)
##
## Residuals:
## Min 1Q Median 3Q Max
## -37.94358 -5.64216 -0.24203 6.22748 22.82069
##
## Coefficients:
## Estimate Std. Error t value Pr(>|t|)
## Rho 0.461487 0.187939 2.4555 0.014069
## (Intercept) 43.528473 11.061569 3.9351 8.316e-05
## INC -0.999276 0.385591 -2.5915 0.009555
## HOVAL -0.265650 0.092391 -2.8753 0.004037
##
## Residual variance (sigma squared): 104.66, (sigma: 10.231)
Spatial error
error<-errorsarlm(CRIME ~ INC + HOVAL,listw = listw, data=columbus)
summary(error)
##
## Call:errorsarlm(formula = CRIME ~ INC + HOVAL, data = columbus, listw = listw)
##
## Residuals:
## Min 1Q Median 3Q Max
## -34.65998 -6.16943 -0.70623 7.75392 23.43878
##
## Type: error
## Coefficients: (asymptotic standard errors)
## Estimate Std. Error z value Pr(>|z|)
## (Intercept) 60.279469 5.365594 11.2344 < 2.2e-16
## INC -0.957305 0.334231 -2.8642 0.0041806
## HOVAL -0.304559 0.092047 -3.3087 0.0009372
##
## Lambda: 0.54675, LR test value: 7.2556, p-value: 0.0070679
## Asymptotic standard error: 0.13805
## z-value: 3.9605, p-value: 7.4786e-05
## Wald statistic: 15.686, p-value: 7.4786e-05
##
## Log likelihood: -183.7494 for error model
## ML residual variance (sigma squared): 97.674, (sigma: 9.883)
## Number of observations: 49
## Number of parameters estimated: 5
## AIC: 377.5, (AIC for lm: 382.75)
error_gmm<-GMerrorsar(CRIME ~ INC + HOVAL,listw = listw, data=columbus)
summary(error_gmm)
##
## Call:GMerrorsar(formula = CRIME ~ INC + HOVAL, data = columbus, listw = listw)
##
## Residuals:
## Min 1Q Median 3Q Max
## -30.6689 -6.6664 -2.3305 9.8505 28.6764
##
## Type: GM SAR estimator
## Coefficients: (GM standard errors)
## Estimate Std. Error z value Pr(>|z|)
## (Intercept) 62.918810 5.111018 12.3104 < 2.2e-16
## INC -1.150075 0.341405 -3.3687 0.0007554
## HOVAL -0.298231 0.096707 -3.0839 0.0020434
##
## Lambda: 0.38345 (standard error): 0.42729 (z-value): 0.89742
## Residual variance (sigma squared): 108.18, (sigma: 10.401)
## GM argmin sigma squared: 107.84
## Number of observations: 49
## Number of parameters estimated: 5
SARAR Model
sarar<-sacsarlm(CRIME ~ INC + HOVAL,listw = listw, data=columbus)
summary(sarar)
##
## Call:sacsarlm(formula = CRIME ~ INC + HOVAL, data = columbus, listw = listw)
##
## Residuals:
## Min 1Q Median 3Q Max
## -37.35601 -5.04457 -0.18999 6.71177 23.28400
##
## Type: sac
## Coefficients: (asymptotic standard errors)
## Estimate Std. Error z value Pr(>|z|)
## (Intercept) 47.915359 9.985548 4.7985 1.599e-06
## INC -1.042749 0.328628 -3.1730 0.001509
## HOVAL -0.279841 0.090699 -3.0854 0.002033
##
## Rho: 0.36937
## Asymptotic standard error: 0.19625
## z-value: 1.8821, p-value: 0.059817
## Lambda: 0.14642
## Asymptotic standard error: 0.30102
## z-value: 0.4864, p-value: 0.62668
##
## LR test value: 9.6444, p-value: 0.0080489
##
## Log likelihood: -182.555 for sac model
## ML residual variance (sigma squared): 97.043, (sigma: 9.8511)
## Number of observations: 49
## Number of parameters estimated: 6
## AIC: 377.11, (AIC for lm: 382.75)
sarar_gmm<- gstsls(CRIME ~ INC + HOVAL,listw = listw, data=columbus)
summary(sarar_gmm)
##
## Call:gstsls(formula = CRIME ~ INC + HOVAL, data = columbus, listw = listw)
##
## Residuals:
## Min 1Q Median 3Q Max
## -37.92539 -5.54440 -0.15737 6.11962 22.88118
##
## Type: GM SARAR estimator
## Coefficients: (GM standard errors)
## Estimate Std. Error z value Pr(>|z|)
## Rho_Wy 0.461787 0.187391 2.4643 0.013728
## (Intercept) 43.540444 11.090741 3.9258 8.643e-05
## INC -1.005003 0.386718 -2.5988 0.009355
## HOVAL -0.264092 0.092227 -2.8635 0.004190
##
## Lambda: -0.016981
## Residual variance (sigma squared): 104.72, (sigma: 10.233)
## GM argmin sigma squared: 95
## Number of observations: 49
## Number of parameters estimated: 6
